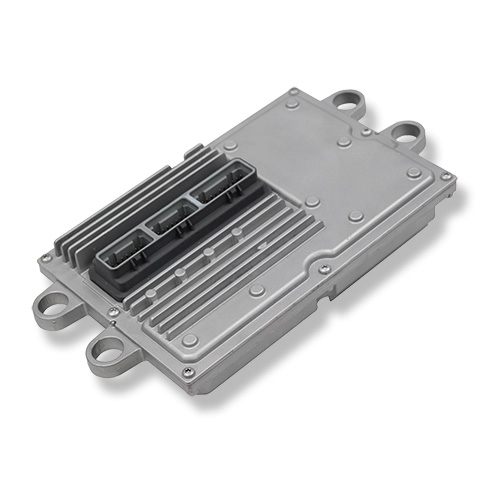

This is a remanufactured Ford 6.0L PowerStroke Fuel Injection Control Module (FICM).

• The remanufacturing process of these modules address the most common failures in the OEM design.
• The units have been modified to fit both older and newer applications and come pre-programmed, so you can plug it into your vehicle and get back on the road.
• The components that cause these failures are replaced in every module to ensure you get a quality, reliable product.
• Each module goes through full functional testing and tri-temperature testing, using actual injector simulation.

*CORE MUST BE IN "OFF ENGINE CONDITION" FOR FULL CREDIT*

The purchase of this part includes a separate charge for a core deposit. We provide a FREE pre-paid return shipping label to send your old part (core/cores) back to us. While we would appreciate getting the return back as soon as possible, you have 12 months to return the core for a refund. You will no longer be eligible to return the core, or receive a refund, after 1 year from your original purchase. Please see our core return policy or contact us with any questions.

COMMON FICM FAULT CODES

FICM has detected an open injector circuit. Defective stator, harness, FICM.

• P0264: Cylinder 2 Injector Circuit Low
• P0267: Cylinder 3 Injector Circuit Low
• P0270: Cylinder 4 Injector Circuit Low
• P0273: Cylinder 5 Injector Circuit Low
• P0276: Cylinder 6 Injector Circuit Low
• P0279: Cylinder 7 Injector Circuit Low
• P0282: Cylinder 8 Injector Circuit Low

FICM has detected a short in an injector circuit. Injector circuit short to ground. Defective stator, harness, FICM.

• P0262: Cylinder 1 injector circuit high
• P0265: Cylinder 2 injector circuit high
• P0268: Cylinder 3 injector circuit high
• P0271: Cylinder 4 injector circuit high
• P0274: Cylinder 5 injector circuit high
• P0277: Cylinder 6 injector circuit high
• P0280: Cylinder 7 injector circuit high
• P0283: Cylinder 8 injector circuit high

Maximum or minimum pulse width exceeded. Cylinder weak due to mechanical problem or injectors not contributing correct volume of fuel.

• P0263: Cylinder 1 contribution balance
• P0266: Cylinder 2 contribution balance
• P0269: Cylinder 3 contribution balance
• P0272: Cylinder 4 contribution balance
• P0275: Cylinder 5 contribution balance
• P0278: Cylinder 6 contribution balance
• P0281: Cylinder 7 contribution balance
• P0284: Cylinder 8 contribution balance

Miscellaneous faults.

• P0611: FICM performance - FICM memory fault will set if a RAM or ROM fault exists. Loss of FICM power or other internal FICM failure
• P1378: FICM system voltage low - FICM detects power below 7 volts. Low batteries, loose connection/resistance in circuit, defective relay.
• P1379: FICM system voltage high - FICM detects power exceeding 16 volts. Charging system fault.
• P0148: Fuel delivery error - Engine RPM exceeded requested RPM.
• P2552: FICM circuit - Throttle/fuel inhibit circuit.
• U0105: Lost communication with FICM - Check Can2H/Can2L circuits. FICM or PCM issue.
• U0306: Software compatibility issues with FICM - Reprogramming of FICM and PCM may ne necessary.

Before replacing any damaged component you should always first determine what caused the component to fail and repair that before continuing.

Static electricity can damage electronic components. By following a few safety procedures you can reduce the risk of damage from static electricity.

• Avoid contact with the electrical connectors
• By frequently touching a known good ground during installation you can discharge any static electricity that you may have developed.

• 1 Year
• Unlimited Mileage
