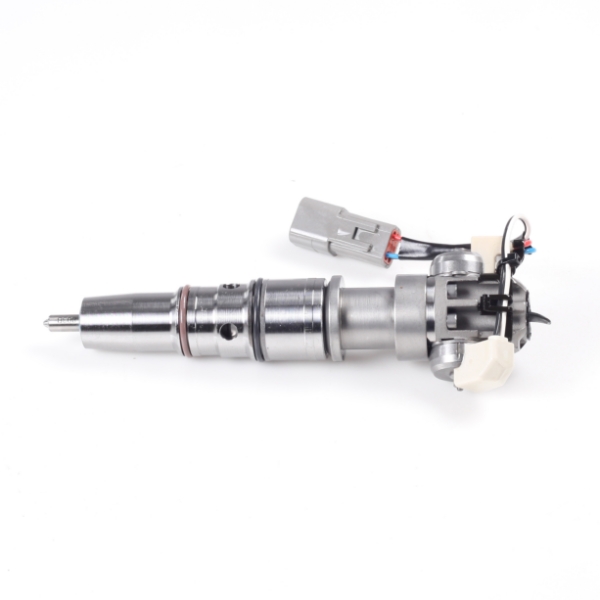

Premium Remanufactured Navistar G2.9 Fuel Injectors.
- These are fully disassembled and precision cleaned.
- Components are re-certified to OE specifications.
- Each injector is processed keeping all components together to minimize part fit variation and maintain original performance.
- Every injector is assembled with New Coils, New Connectors and a New Nozzle to ensure the highest quality and reliability.
- Every injector is tested to ensure fuel flow meets precise specifications on the latest equipment in the aftermarket.
Additional part numbers for differing applications will be launched early 2016. The applications for these injectors include the DT466, DT570, MaxxForce 9, and MaxxForce 10 medium duty applications.
| Applications: |
2004 International/Navistar DT466 245-285 HP (HT), 2005 International/Navistar DT466 210-285 HP |
| Reference Numbers: |
FSR1842577, AP66977, 1842577C93, 5010657R92, 1842224C91 |
*CORE MUST BE IN "OFF ENGINE CONDITION" FOR FULL CREDIT*
The purchase of this part includes a separate charge for a core deposit. We provide a FREE pre-paid return shipping label to send your old part (core/cores) back to us. While we would appreciate getting the return back as soon as possible, you have 12 months to return the core for a refund. You will no longer be eligible to return the core, or receive a refund, after 1 year from your original purchase. Please see our core return policy or contact us with any questions.
O-rings and combustion seal come with every injector.
We highly recommend the Navistar Oil Rail Seal Kit when replacing injectors.
During installation, be sure of the following:
- Follow manufacturer installation procedure and torque specifications.
- Replace oil rail seals and back up rings included in the Oil Rail Seal Kit (sold separately). Follow kit instructions to select correct size.
- Thoroughly clean and inspect injector cups.
- Verify combustion seals are installed on new injectors and the old combustion seals were removed with previous injectors.
- Flush and inspect fuel supply system. Verify cleanliness and quality of fuel. Replace fuel filter.
- Clean and inspect oil supply system. Replace engine oil and filter.
- Lubricate Injector O-rings with clean engine oil.
- Blow out oil from threaded holes prior to installing injector hold down bolts.
- Verify correct fuel pressure after injector installation.
- Valve Cover Gasket replacement is recommended. The valve cover gasket has integrated circuits for injectors and ICP sensor, and failures from “Oil Wicking” are common. Injector circuit codes and misfires under load are commonly caused by poor connections at the valve cover gasket. Use the latest design with improved electrical locks to avoid this issue.
